Event Categorization

Arista Networks

The Project

In any given network, thousands of things can go wrong at any moment, ranging from minor issues like a slightly overactive CPU fan to critical failures such as a complete device outage. CloudVision helps users manage and detect these issues by providing a system for managing Events, alerts that highlight potential issues in the network. Users are able to set custom parameters for each event, allow them to prioritize urgent problems while filtering out less critical ones. This allows users to quickly identify which parts of their network need immediate attention and which can be addressed later.

Role - Lead UX Designer

As the sole UX designer, I was in responsible for the creative direction, from user research and concept development to prototyping and implementation. I also worked closely with cross-functional teams, including product managers, developers, and stakeholders, to create a collaborative and inclusive design process.

Tools Used
Figma and Adobe Illustrator were primarily used throughout the design process.

//Project Restriction

Due to the nature of the redesign, I am unable to publicly share the entire design process of the project.
If you would like to learn more about this project and the design process, please reach out to me.

Due to the nature of the redesign, I am unable to publicly share the entire design process of the project.

If you would like to learn more about this project and the design process, please reach out to me.

Project Goals

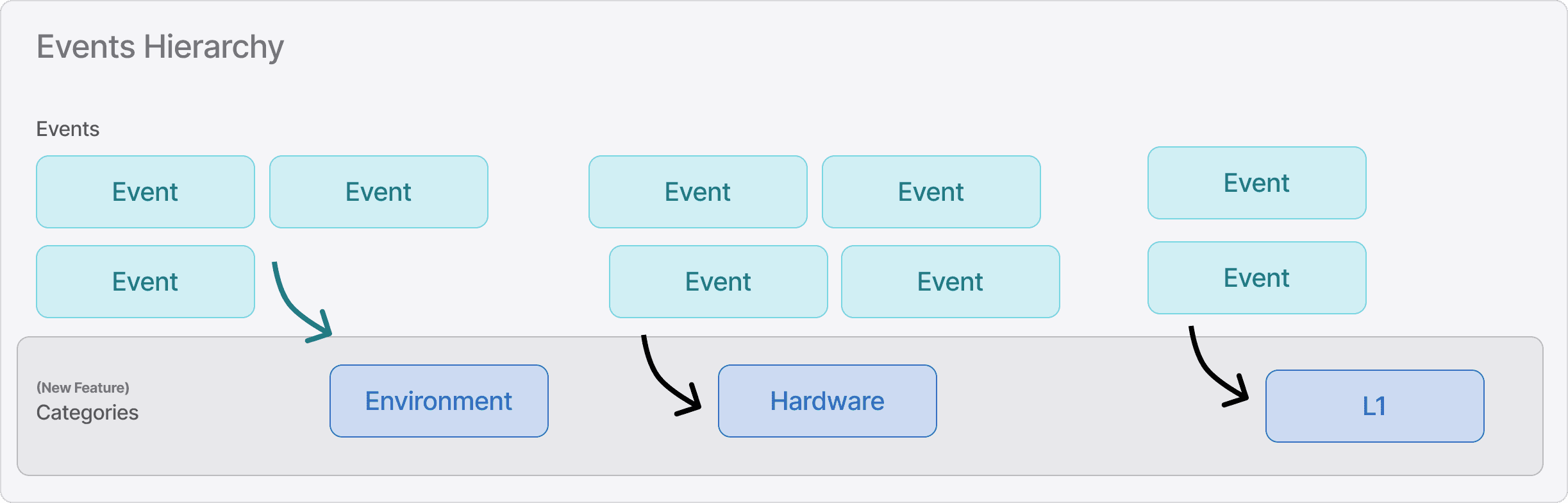

The goal of this project is to create a system that categorizes network events, assisting users to quickly identify which aspects of their network require critical attention. By organizing events into clear categories, such as Hardware, Environment, and Layer 1 (L1), CloudVision allows users to easily distinguish between physical issues and network-related problems. This structure enables more efficient troubleshooting, helping users prioritize actions based on the severity and nature of the issue at hand.

More information regarding design process and success metrics can be shared in interviews.

Final Designs and Deliverables

Workflows and mockups below have been slightly modified to show ONLY relavent mockups created by myself, and have remove any sensitive information and interactions pertaining to the other parts of the product.

Drag and Drop

A new interaction, with the help of the design team, that was created for this purpose and added to the design system.

(Interaction example created through Figma Make - For a more accurate representation of the designs, please refer to the mockups below)

Event Categorization

The main categorization workflow

Creating a Custom Category

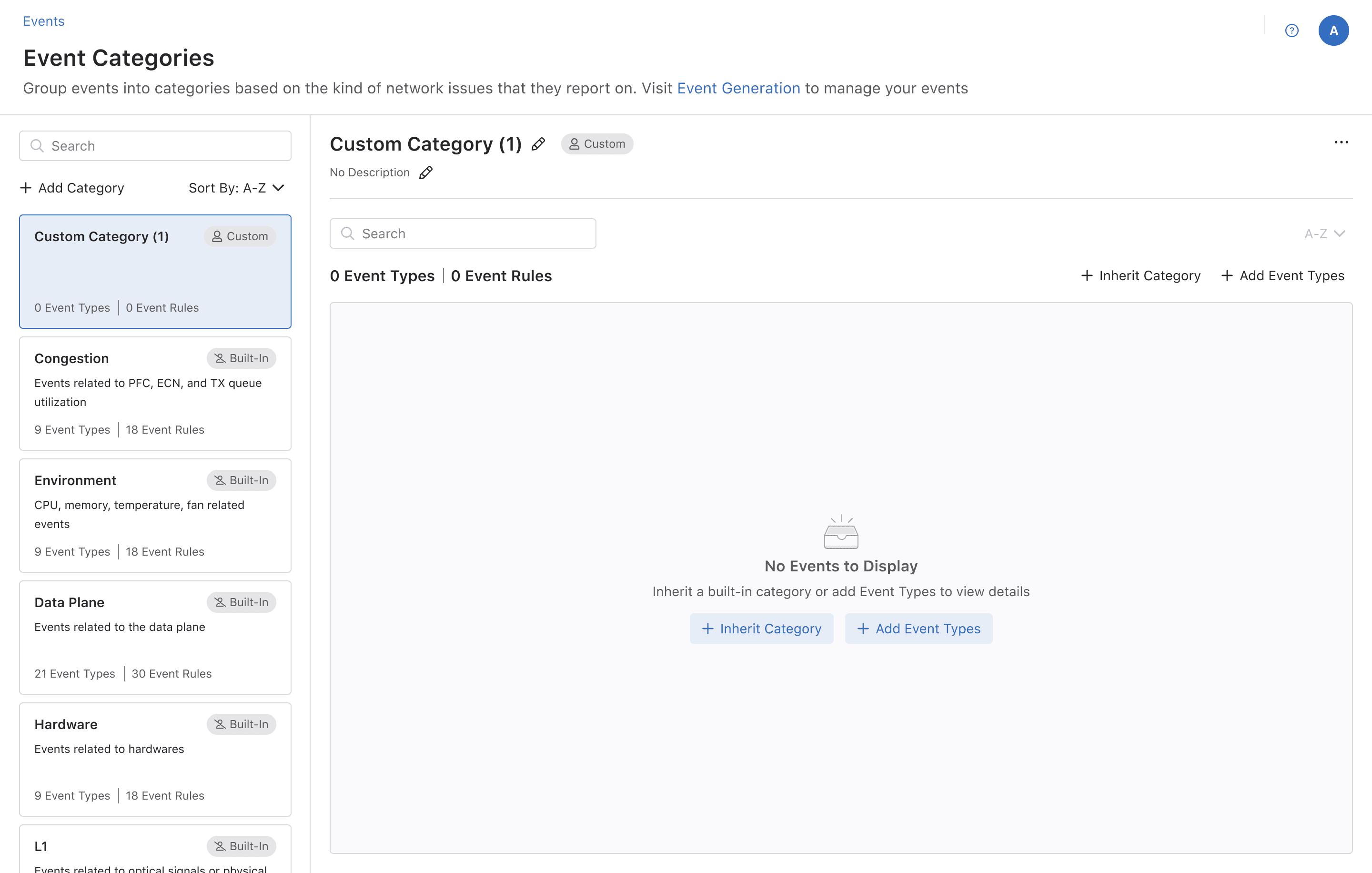

The initial empty state users would see

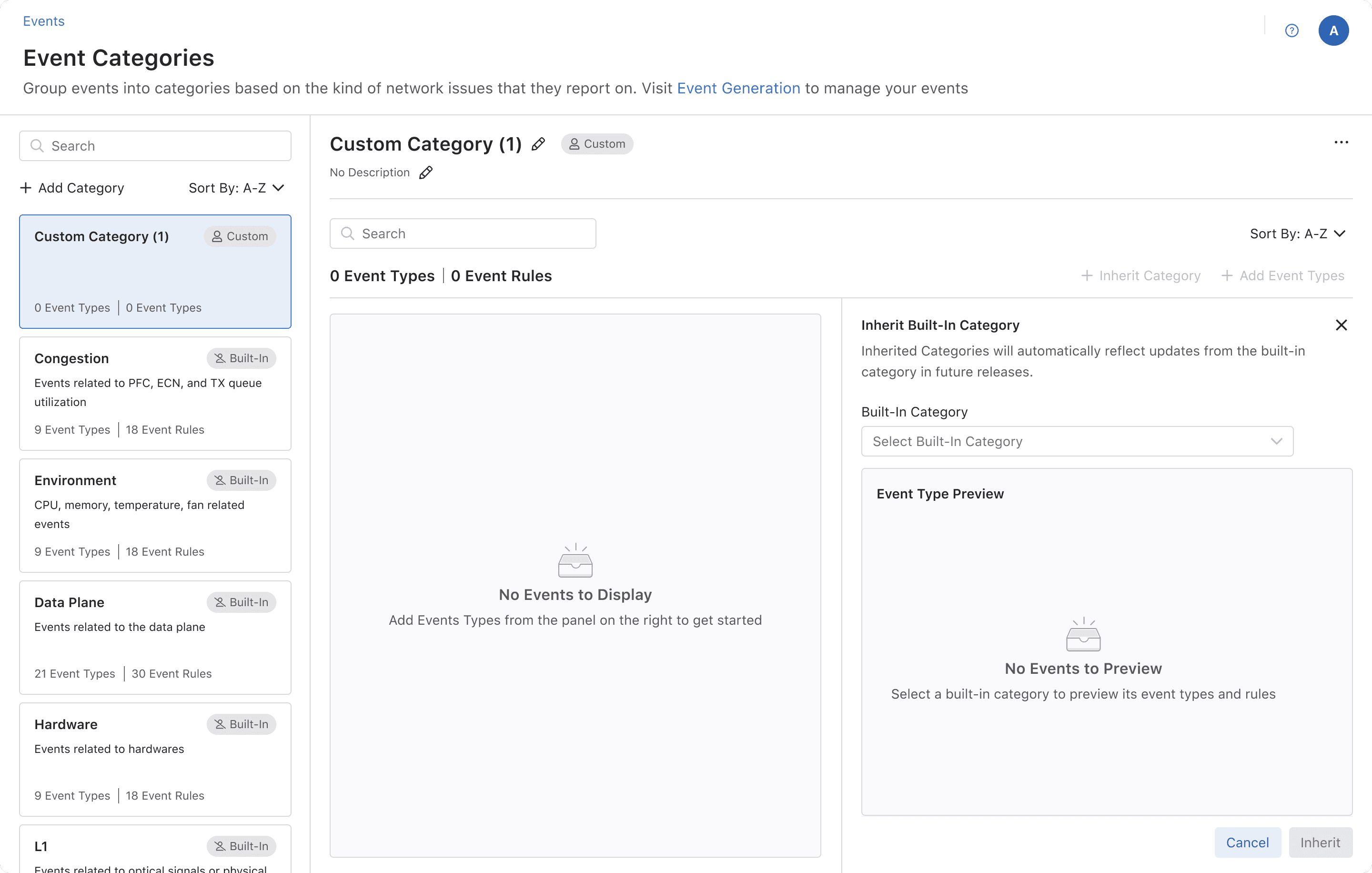

Empty State - Drawer

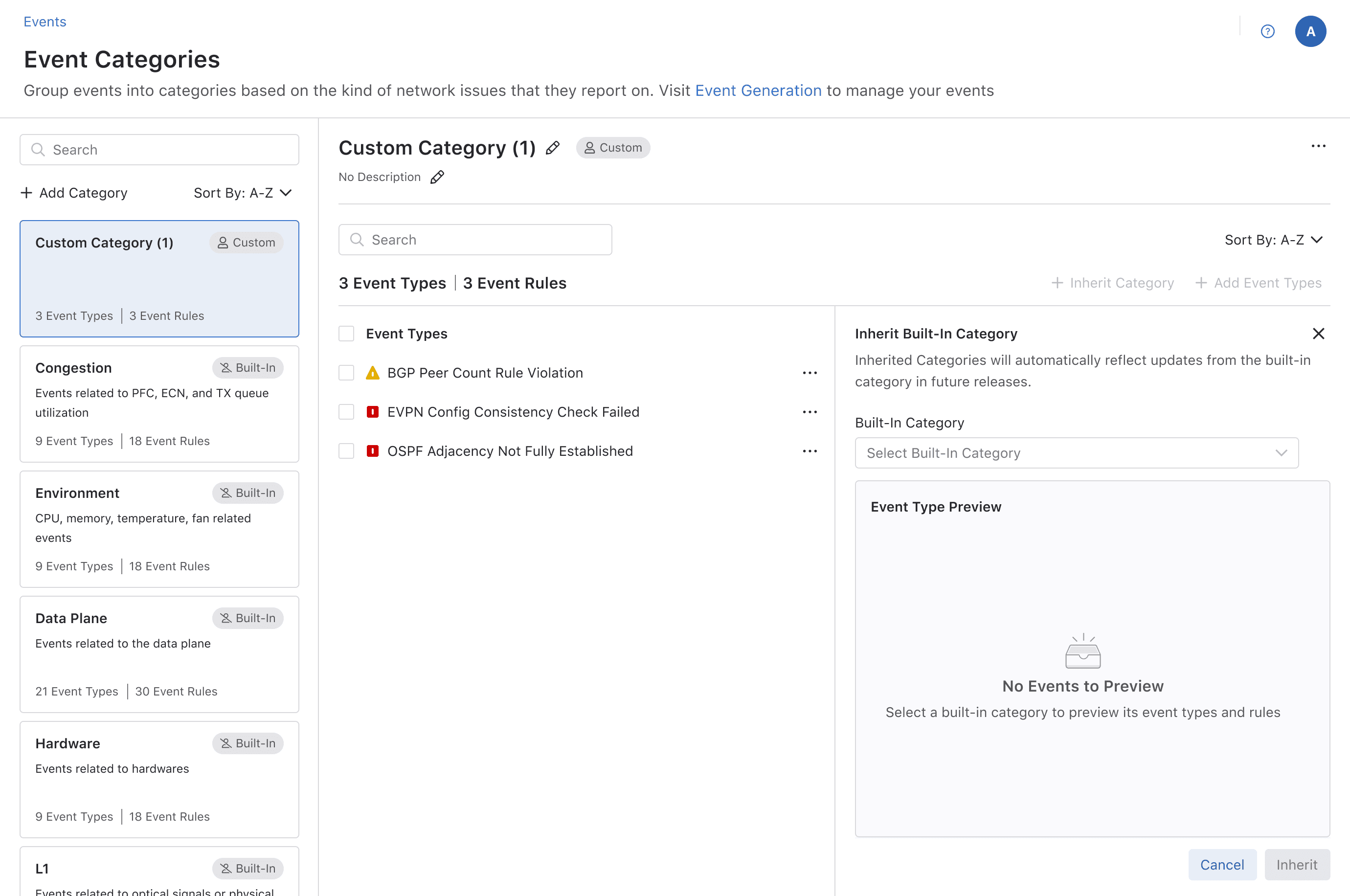

The empty state for when users attempt to inherit a category

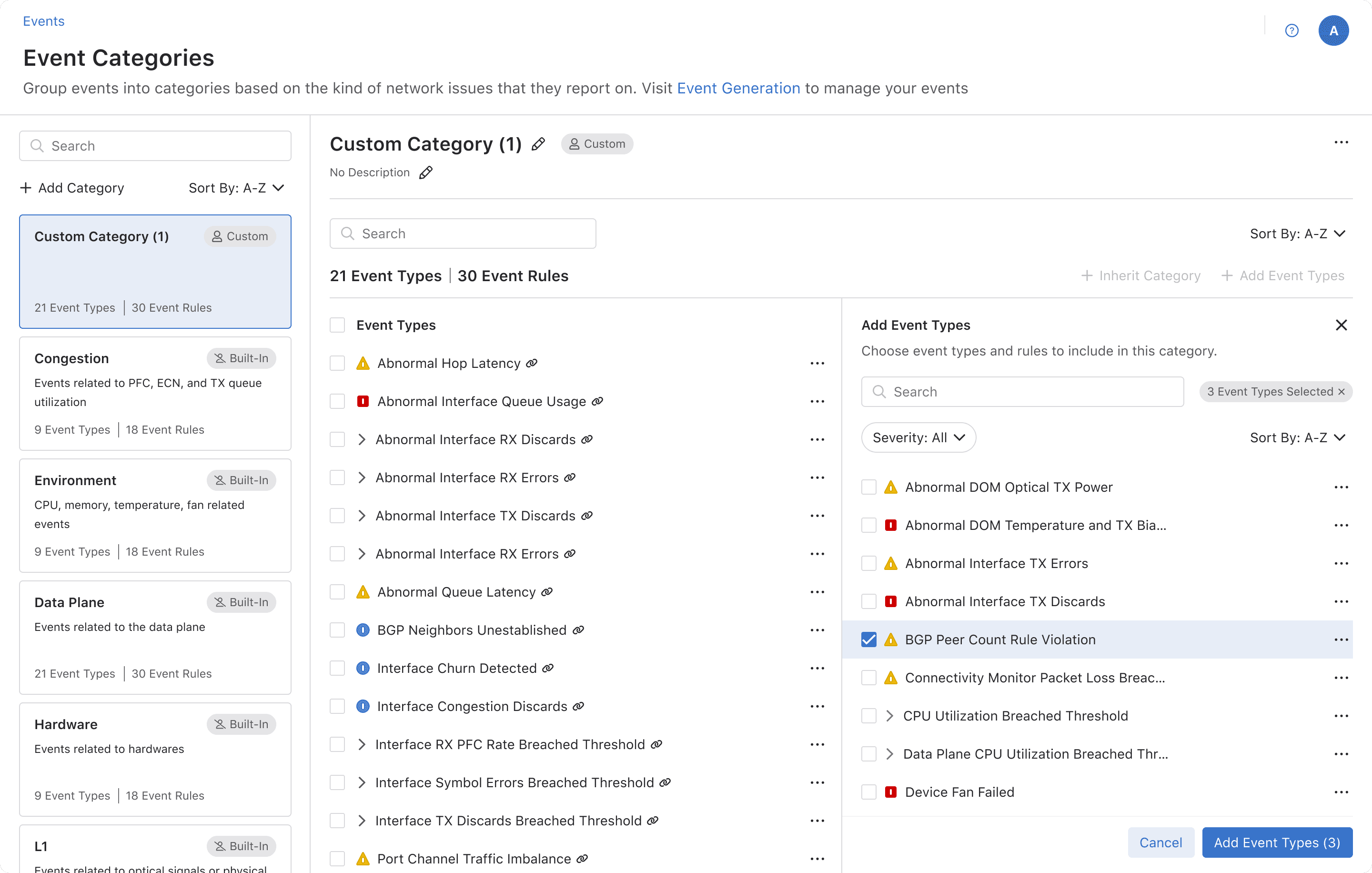

Adding Events

Users can choose to drag and drop items or select items from the drawer that appears

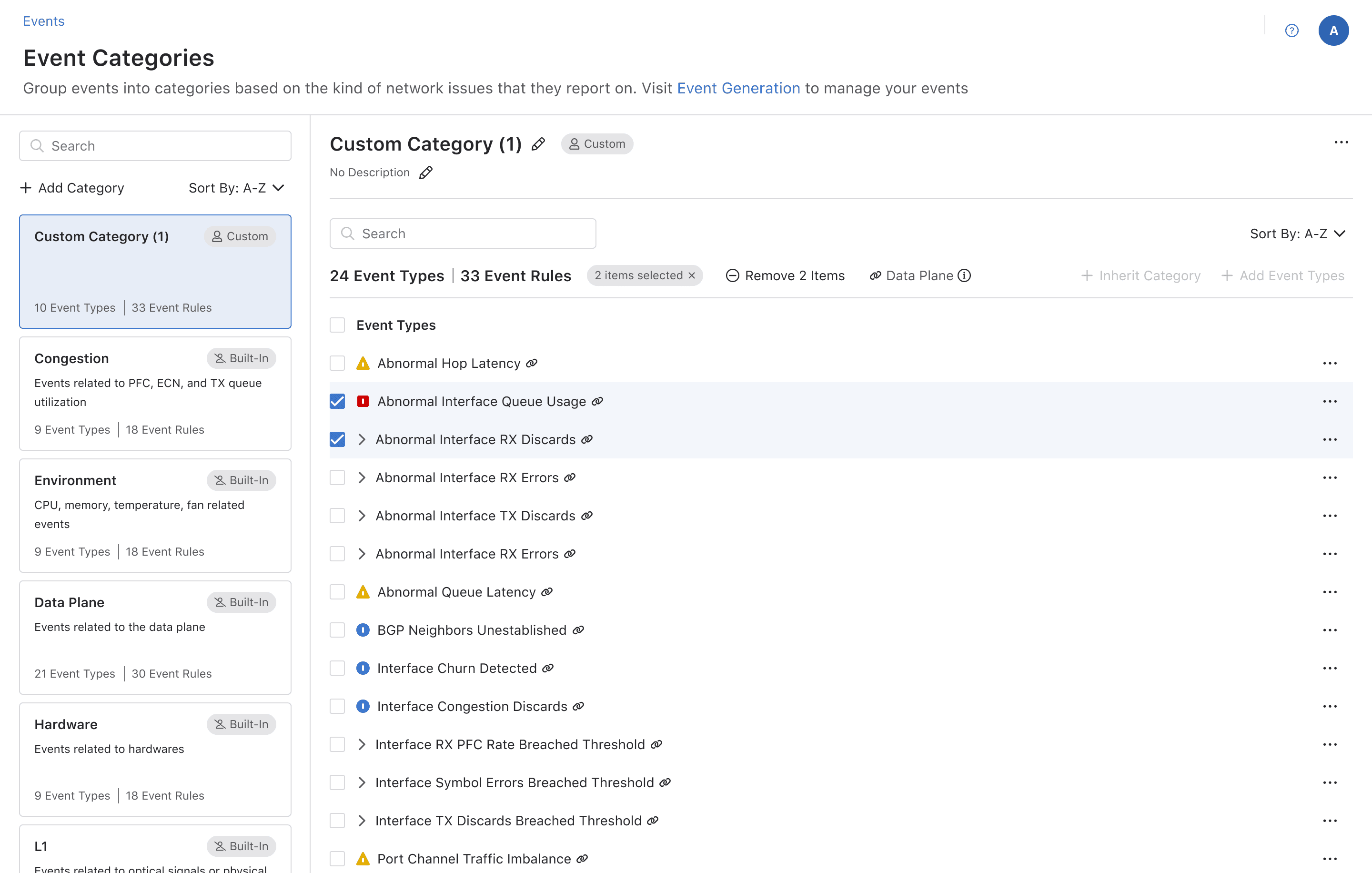

Removing an Event

Items from the list also are selectable for bulk actions

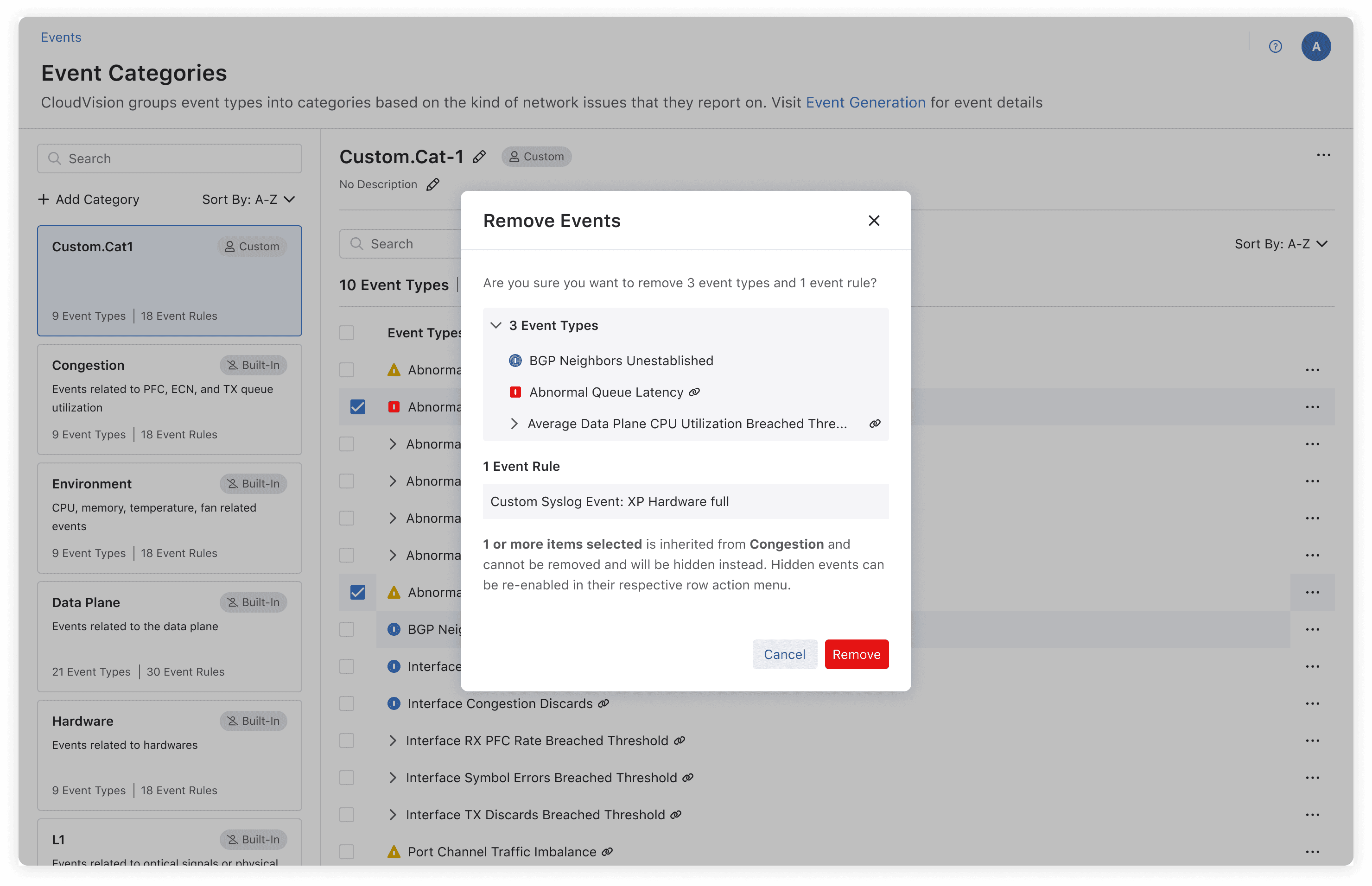

Removing Events Modal

A confirmation modal for when users attempt to remove events from the category

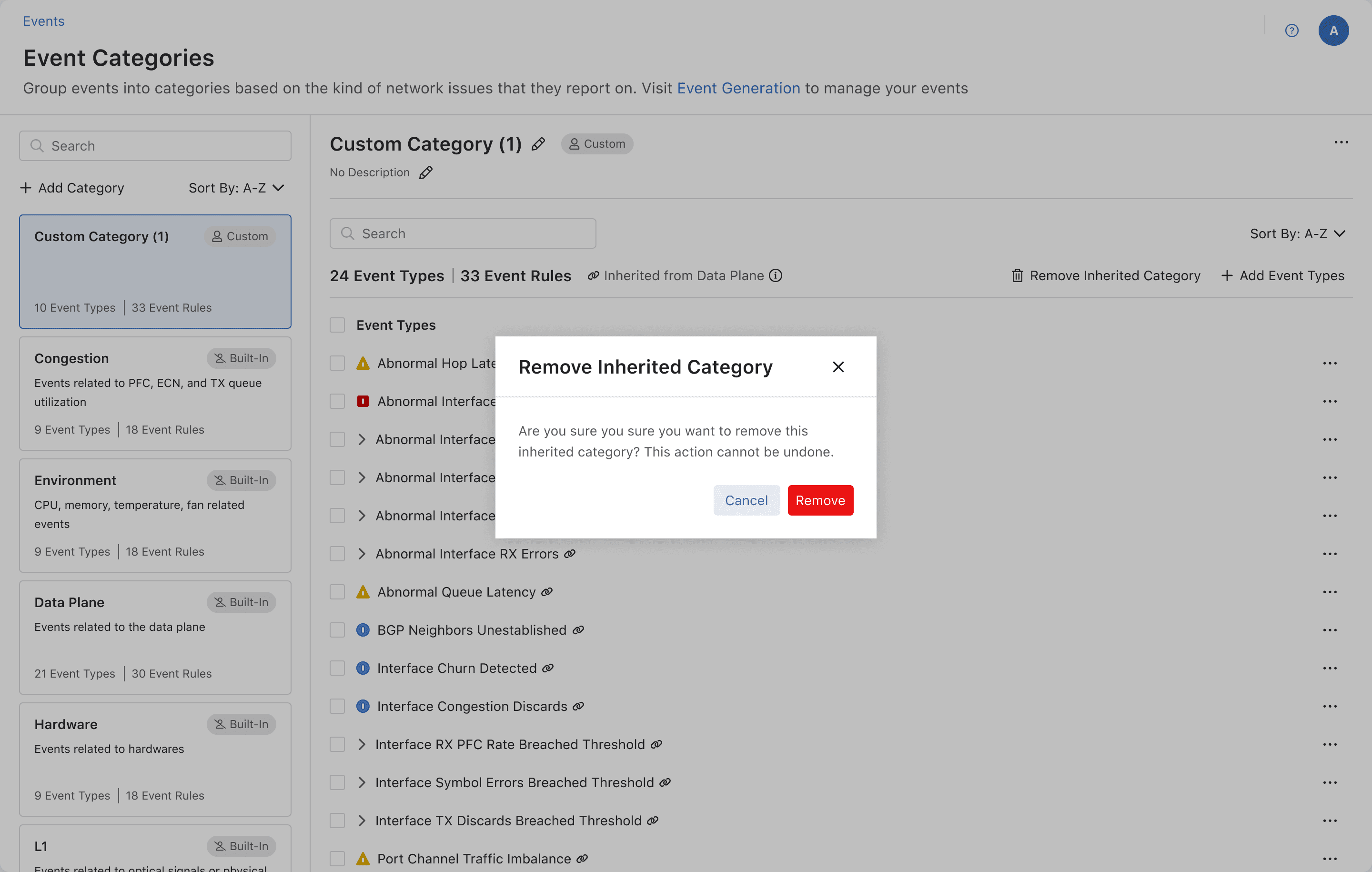

Removing Inherited Category

A confirmation modal for when users remove an inherited category

Validation

As previously noted, direct customer access to user testing and feedback was a difficult avenue. As a result, the main guidance for validation of both direction and design comes internally, from the Sales Engineers, as well as other internal stakeholders.

Confirmation with Sales Engineers
Throughout the design process, outreach to the Sales Engineers for feedback was essential in better understanding and validating design assumptions that were made by the team. As a result, a lot of our guidance depended on first-hand feedback and direction from those directly involved with our end users. Despite not being able to directly user test with users, constant feedback and input from the Sales Engineering team proved to be a suitable replacement.

Confirmation with Project Managers and Developers
Due to the nature of the domain and the extensive knowledge that is required to properly understand user workflows, requirements, etc. I highly depended on the team to properly guide me through the more intricate workflows and thought processes. As a result, their knowledge regarding user requirements, workflows, were only second to the Sales Engineers due to the years of experience both from Arista and the networking domain as a whole. Alongside this, validation regarding feasibility and scope definition was assisted from the team as well.

Confirmation with Designers
Despite being the only UX Designer on the DMF Product, reaching out to the designers from other product teams was imperative in assisting in exploring other avenues of visual design. The designers provided valuable critique in both visual design as well as high level workflow avenues that may already exist in Arista as a whole, leading to a more cohesive product suite under the Arista umbrella.
